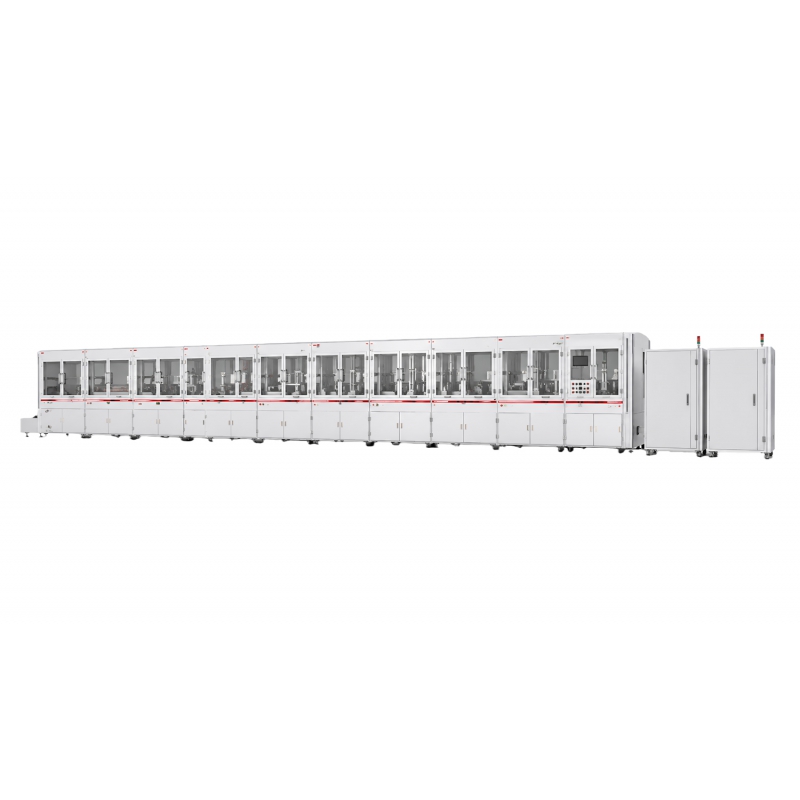

Fully Automatic Fakra Wire Harness Assembly & Inspection Line

Industry Focus

Automotive electronics and intelligent manufacturing of wire harnesses.

Applicable Products

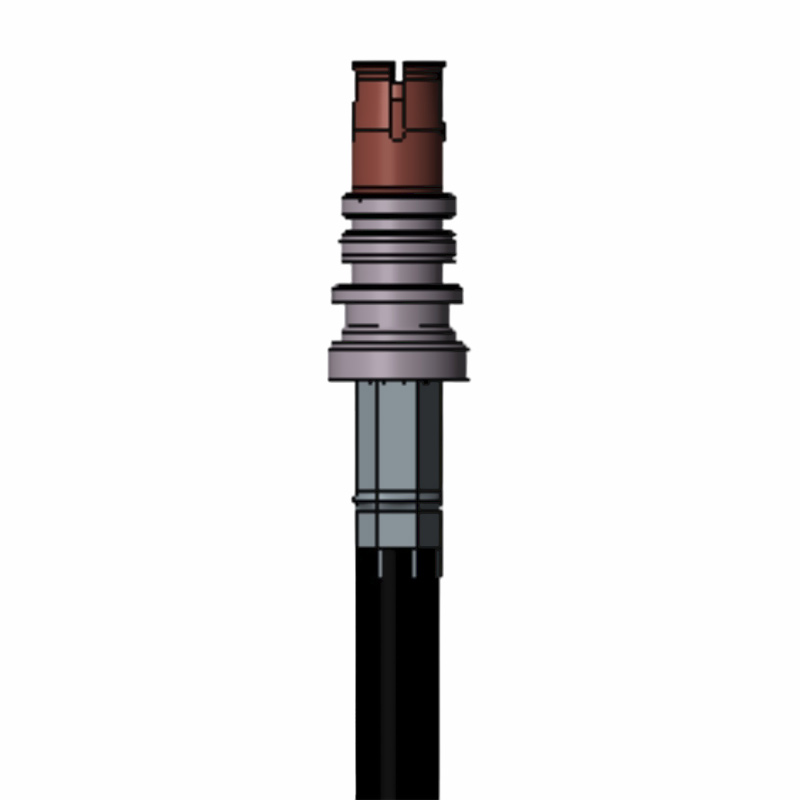

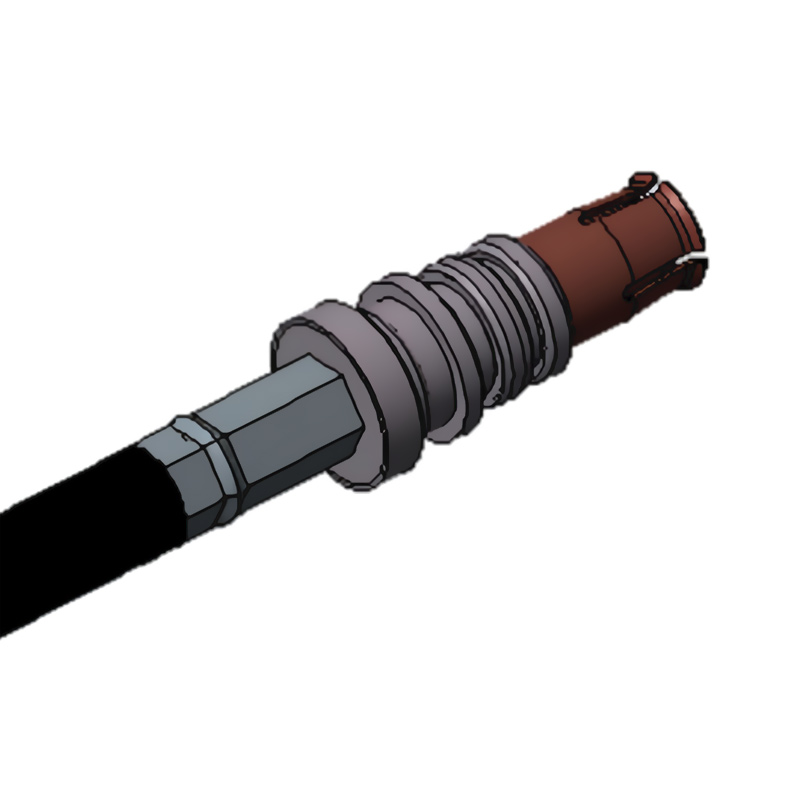

GPS/4G/5G/WiFi, automotive cameras, T-BOX, and other RF coaxial cable assemblies.

Line Compatibility

Supports semi-auto/fully-auto production modes; compatible with cable lengths ranging from 0.5 m to 10 m (customizable).

• High Output & Efficiency: Multi-station parallel operation, ultra-high cycle rate delivers high throughput meeting high-volume production demands.
• Core Processes: 1. Three-blade concentric rotary wire stripping: Supports 1–4-layer cold stripping with an accuracy of ≤ ±0.1 mm, no damage to core wires/shielding mesh; compatible with cables like RG174/RG316, etc.  2. Dual-servo silent crimping: Programmable crimping stroke/pressure/speed; real-time monitoring of pressure-displacement curves; crimping accuracy of ±0.01 mm.  3. Universal braid loosening structure: Multi-angle flexible oscillation ensures even braid spreading, improving downstream yield.
• Full-Process Quality Control: Integrated 3-in-1 inspection (vision + crimping pressure + continuity); supports barcode scanning and curve storage integrated with MES; full-process data traceability prevents defective product from being discharged.
• Easy O&M: Modular design enables changeover within 10 minutes; intuitive interface, simple maintenance, and quick training.
