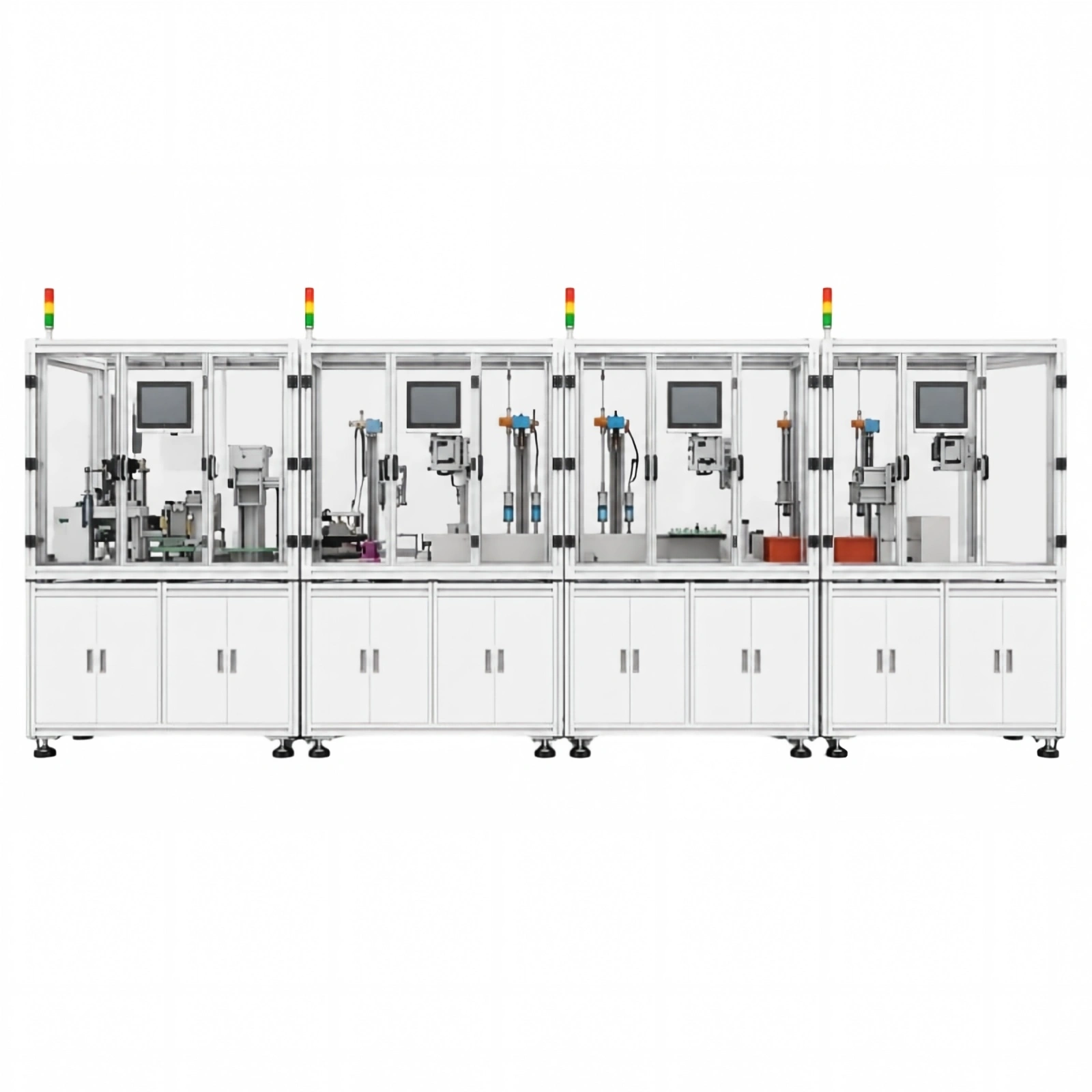

Fully Automatic BTB Female Connector Assembly, Inspection & Packaging Line

Industry Focus

Specialized in the field of consumer electronics precision manufacturing, particularly for smartphone, laptop, and tablet motherboard connectors.

Applicable Products

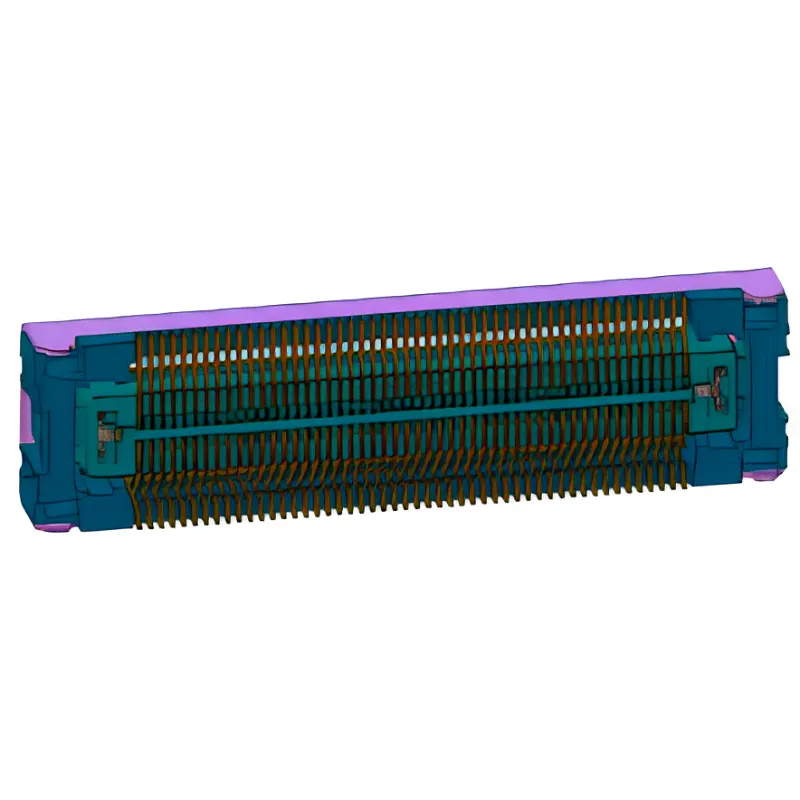

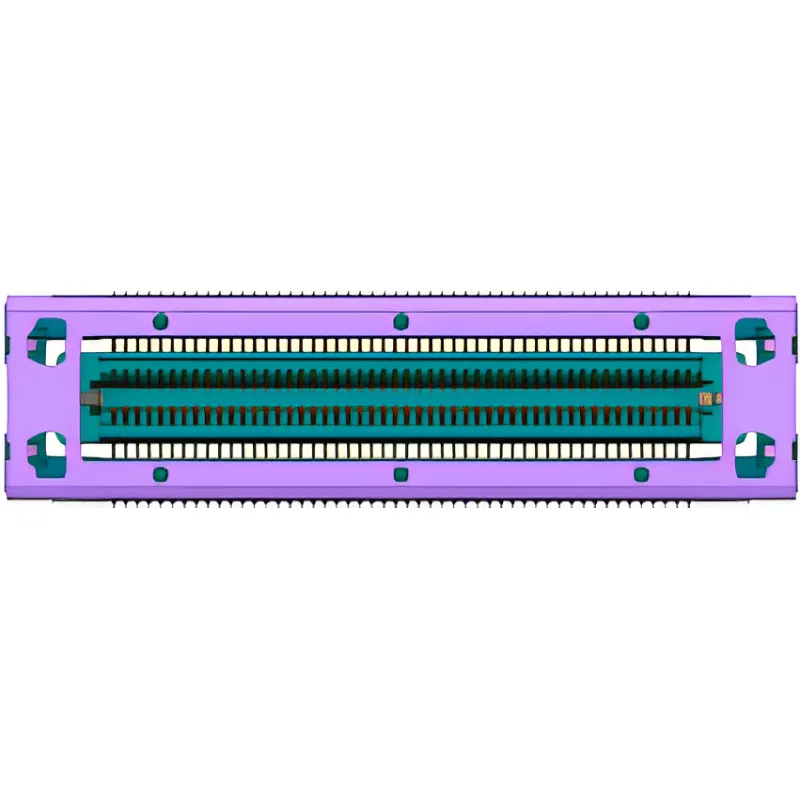

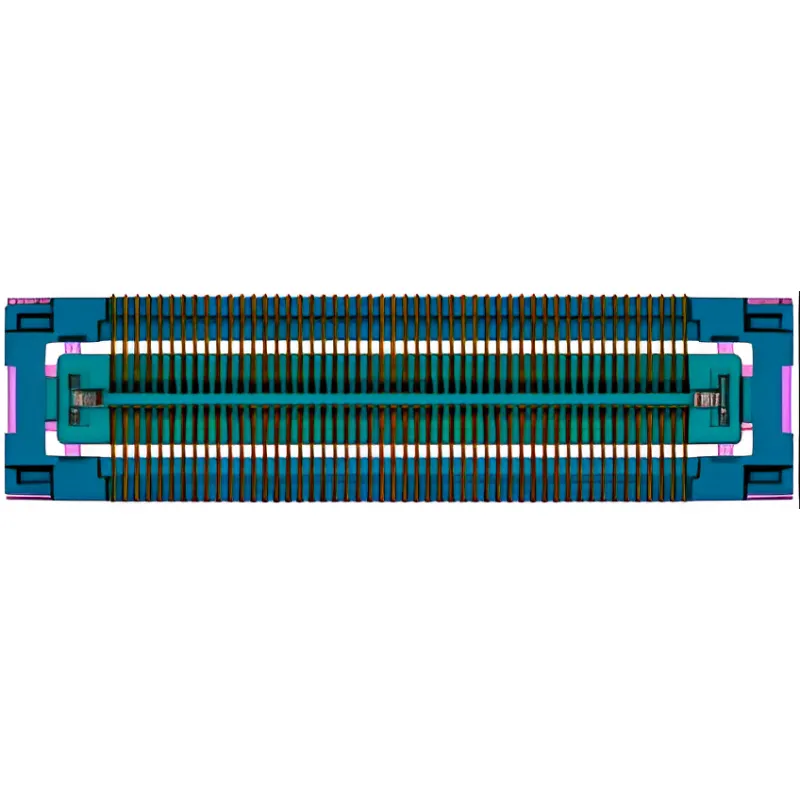

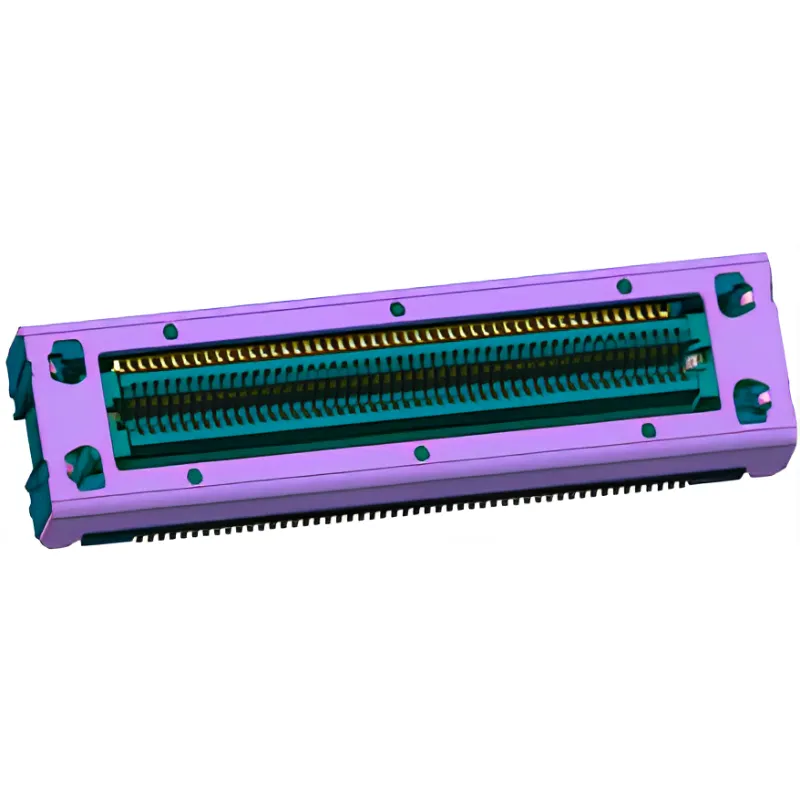

Tailor-made for high-precision BTB (Board-to-Board) female connectors, supporting 4-component automated assembly (housing, terminals, latch, and shield) across various pitch sizes and pin configurations.

Line Compatibility

Operates in fully automated mode with seamless raw material-to-packaging integration; supports standalone turnkey operation or modular integration into complete smart factory production lines.

• High-Speed & High-Precision Pin Insertion System: Engineered to overcome the challenges of blind insertion and component alignment, this electronic connector production line utilizes high-precision positioning and deviation compensation technology to ensure reliable assembly without damaging components. Besides, it features a modular design for easy maintenance and a high-speed cam-driven module capable of 1,200 r/min. With one-click program switching, it provides maximum flexibility for various product specifications.
• Zero-Defect Full-Inspection Vision Quality Inspection: Equipped with Japanese-imported VISCO image inspection device, it ensures precise identification of every single product, preventing any non-conforming items from passing through and guaranteeing superior BTB connector assembly quality.
