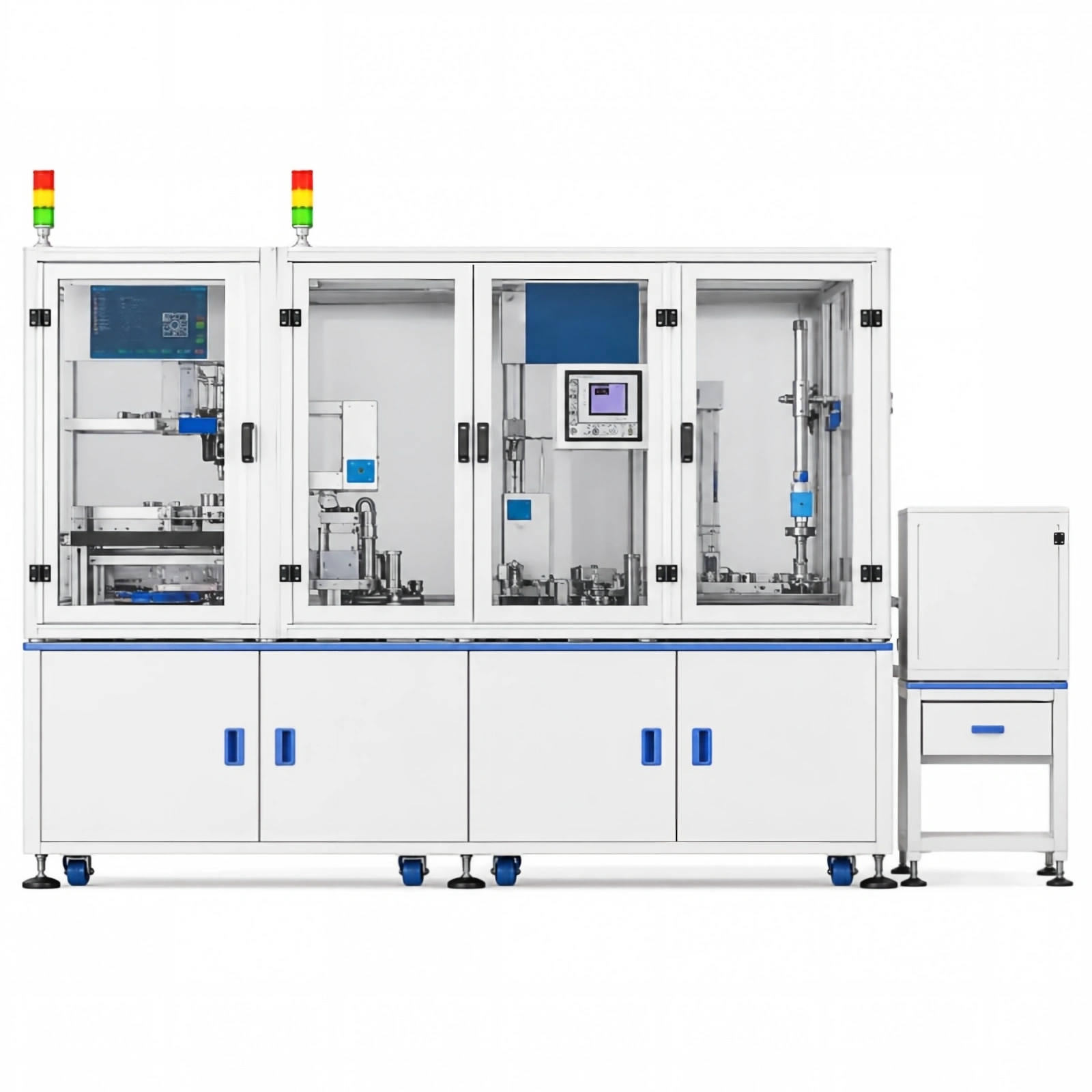

Fully Automatic FPC Female Connector Assembly, Inspection & Packaging Line

Industry Focus

Widely applied in the manufacturing of motherboards and flexible circuit assemblies for smartphones, tablets, and high-end consumer electronics.

Applicable Products

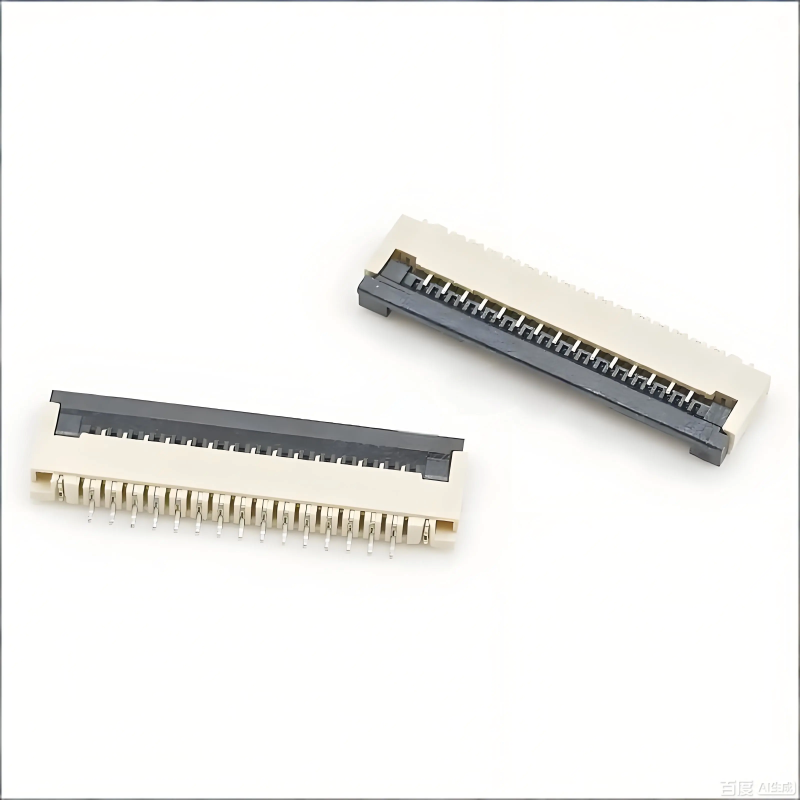

Tailor-made for the precision assembly of FPC female connectors, specifically supporting 0.3mm and 0.5mm pitch components.

Line Compatibility

Operates in fully automatic mode, integrating assembly, real-time inspection, and packaging into a seamless closed-loop production process.

• High-Speed & High-Precision Pin Insertion Process: Addressing the challenges of blind insertion and alignment for 0.3mm/0.5mm pitch FPC components, this system employs advanced positioning to manage minor deviations and prevent component damage. This reliable fpc production line features a modular design for effortless maintenance and and fixture replacement and a high-speed cam-driven module reaching 1,800 r/min for micron-level precision insertion. Additionally, it supports one-click program switching for rapid product changeovers.
• Zero-Defect Full-Inspection Vision Quality Assurance: Equipped with a high-end connector inspection system (Japanese-imported VISCO), the equipment ensures the precise identification and comprehensive inspection of every unit, effectively preventing non-conforming items from passing through and guaranteeing delivery quality.
