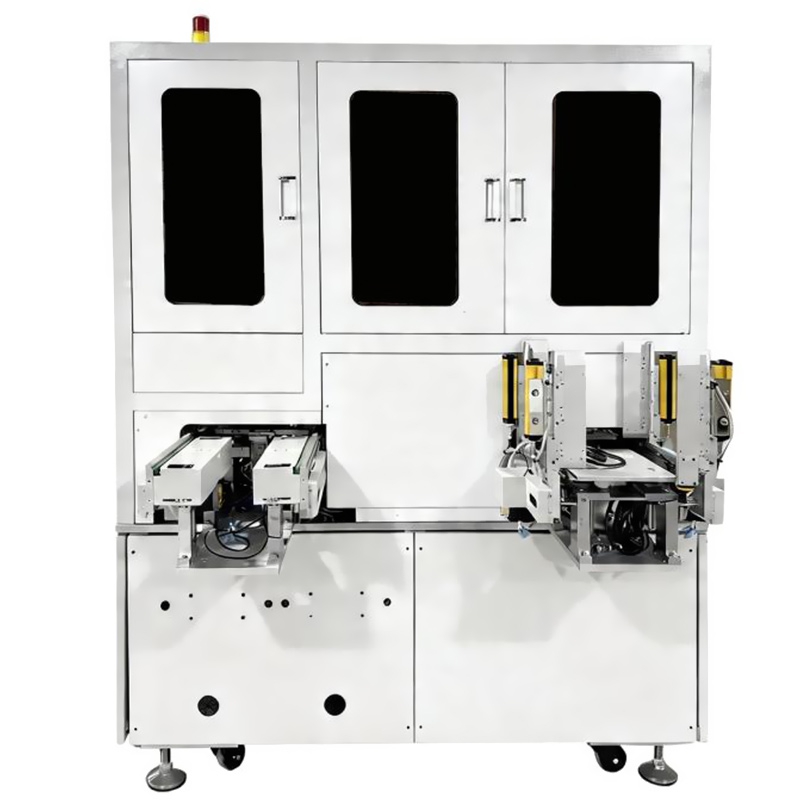

The Flex Quick-Change FPC Placing Machine is designed for automated FPC feeding and precision placement. It integrates tray feeding, high-precision pin positioning and quick-change mechanisms to support accurate FPC placement and efficient changeover between different product specifications.
Industry Focus
Widely used in mobile communications, consumer electronics and related applications.
Applicable Products

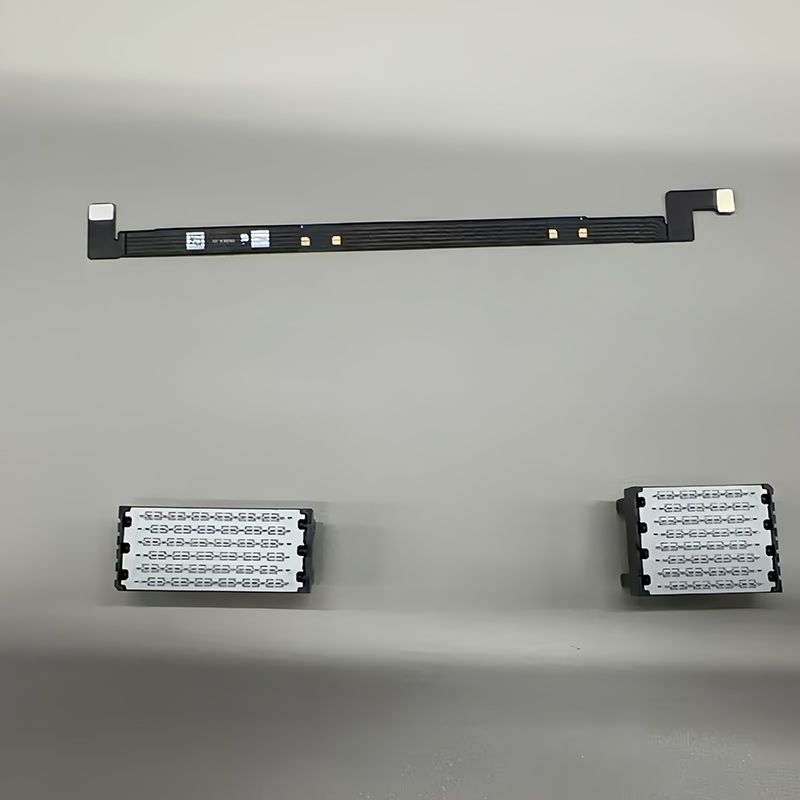

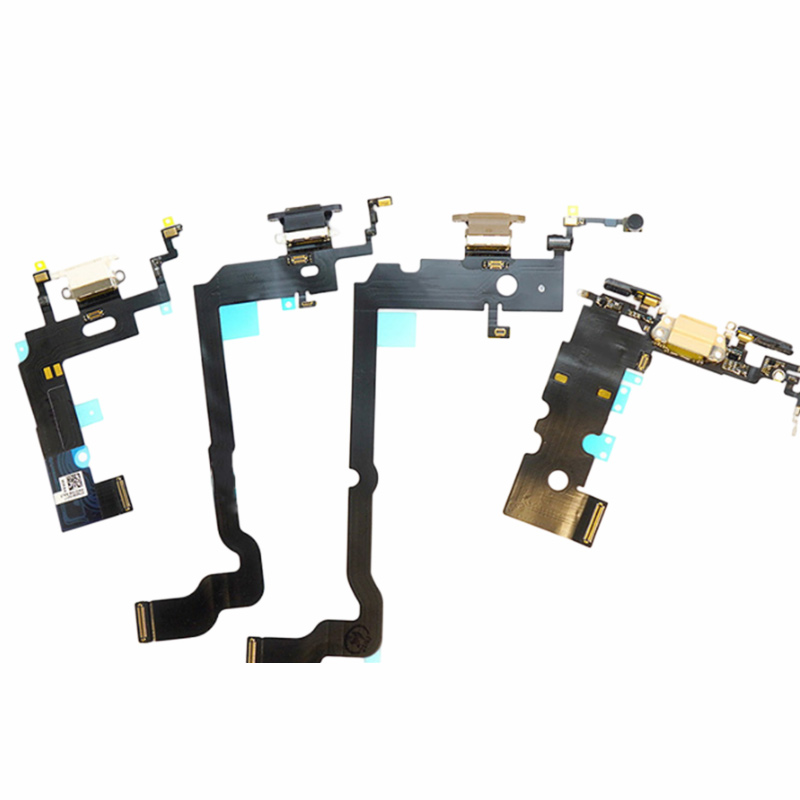

Designed for precision FPC placement in key modules of smart mobile devices, including display and touch modules, camera modules and RF communication modules.
Line Compatibility
Supports fully automated production and quick changeover
Standardized Rail Dimensions
Shared frames and tracks can be used across different product series, reducing the need for equipment redesign and fabrication when introducing new products or modifying existing equipment.
Quick-Change Suction Cups
Suction cups are positioned using guide pins and guide bushings, enabling quick changeover and reducing setup time between different products.
Quick-Change Positioning Pin Plates
Positioning pin plates use guide-pin and guide-bushing positioning for quick replacement and accurate alignment, reducing manual adjustment and calibration.
| Item | Specification |
|---|---|
| Dimensions (L×W×H) | 1500mm × 800mm × 2140mm |
| CT | ≤20s |
| Capacity | 54000 pcs/h |
| Yield | ≥99.9% |
| OEE | ≥95% |
| Changeover Time | 30 min |
