High-Speed Cable Automation

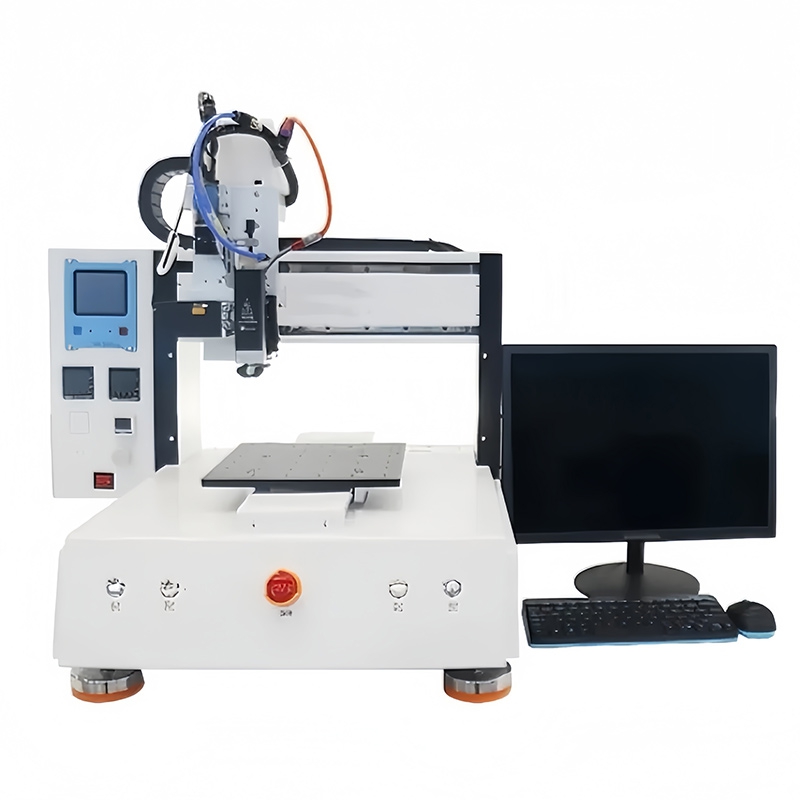

Integrating CCD vision positioning and a non-contact precision jetting system, the machine is designed for precision dispensing of UV-curable acrylic adhesives, solder paste and other materials. It supports customizable XYZ working travel for dispensing applications in high-speed cables, microelectronics and 3C precision components.
Industry Focus
High-speed cables, microelectronics, 3C electronics, consumer electronics and precision electronics manufacturing.
Applicable Products
High-speed cables, electronic components, microelectronic components and 3C precision components requiring precision dispensing.
Line Compatibility
Desktop standalone equipment designed for independent operation.
| Item | Specification |
|---|---|
| Dimensions (L×W×H) | 560 × 623 × 600 mm |
| Drive System | Imported Motors + Linear Guides |
| Working Travel | 300/300/100 mm（customizable） |
| Operating Speed | 300-1000 mm/s（customizable） |
| Machine Load | Y-axis: 10 kg（customizable） |
| Repeatability | ±0.01 mm |
| Dispensing Valve | Pneumatic Jet Valve / Piezo Jet Valve / High-Speed Precision Dispensing Valve |
| CCD Positioning | Standard |
