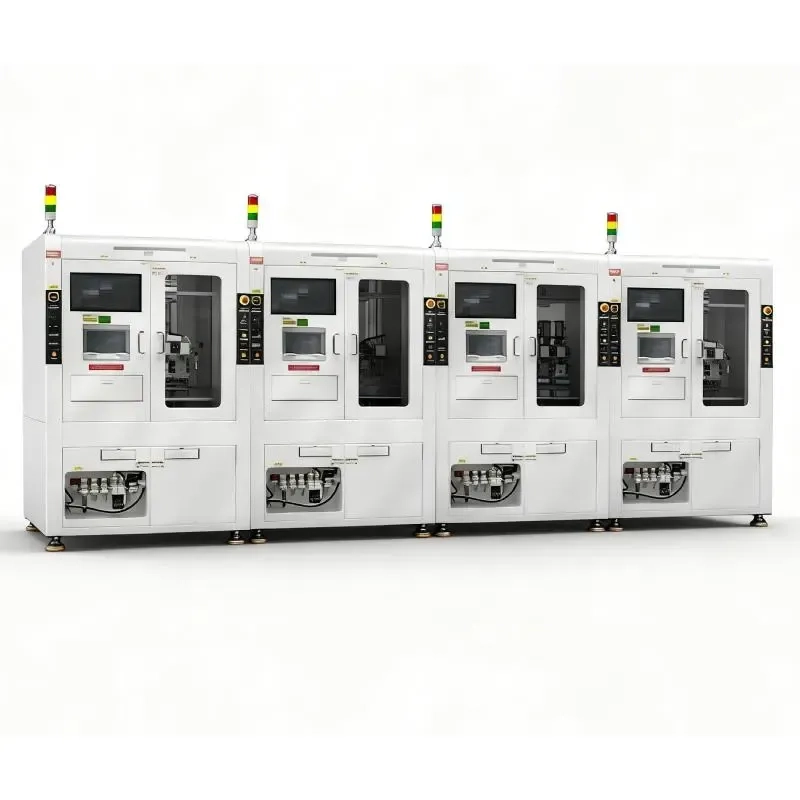

High-Speed Cable Automation
This automatic cable assembly line seamlessly integrates multiple stations, including high-precision automated wire preparing line (incorporating UV laser aluminum foil stripping, CO2 laser dielectric stripping, and conductor pre-forming & final trimming), Mylar remove, and precision resistance welding.
Industry Focus
Specialized in high-density data center interconnects, cloud server infrastructure, and high-frequency signal transmission, engineered for advanced OTB cable assembly manufacturing environments.
Applicable Products

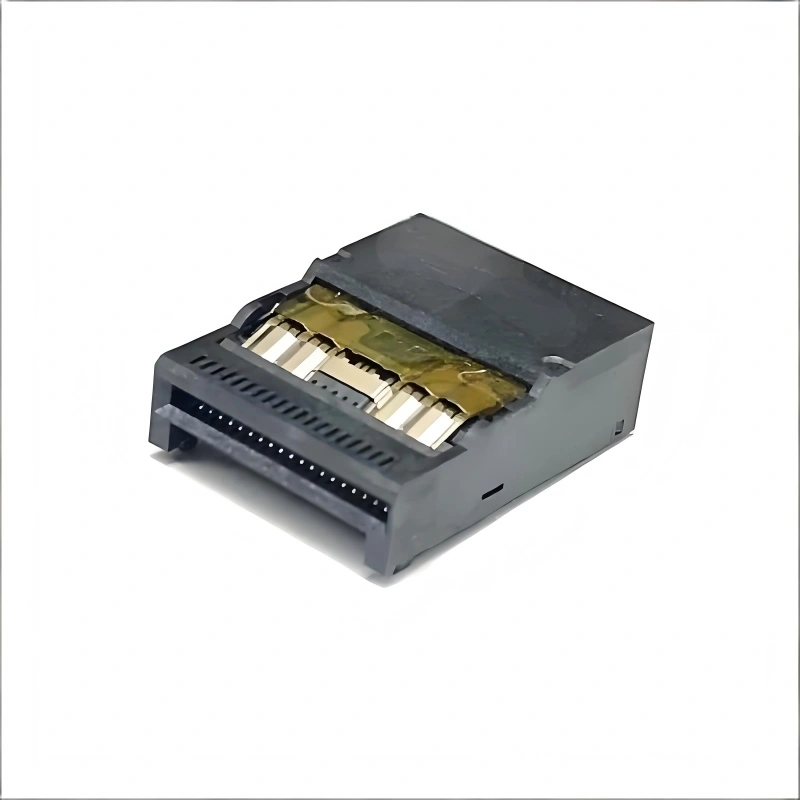

Tailor-made for complex OTB cable assemblies with multi-layer architectures requiring precise stepped cutting and Mylar remove.
Line Compatibility
Built on a modular automation platform, it supports rapid scalability and agile configuration to satisfy high-mix, flexible production demands.
| Item | Specification |
|---|---|
| Dimensions (L×W×H) | 8,400 mm*1,200 mm*1,900 mm |
| Power | AC 220 V 50 Hz |
| Air Supply Pressure | 0.5-0.7 MPa |
| CT | 20 s |
| Yield | > 97% |
