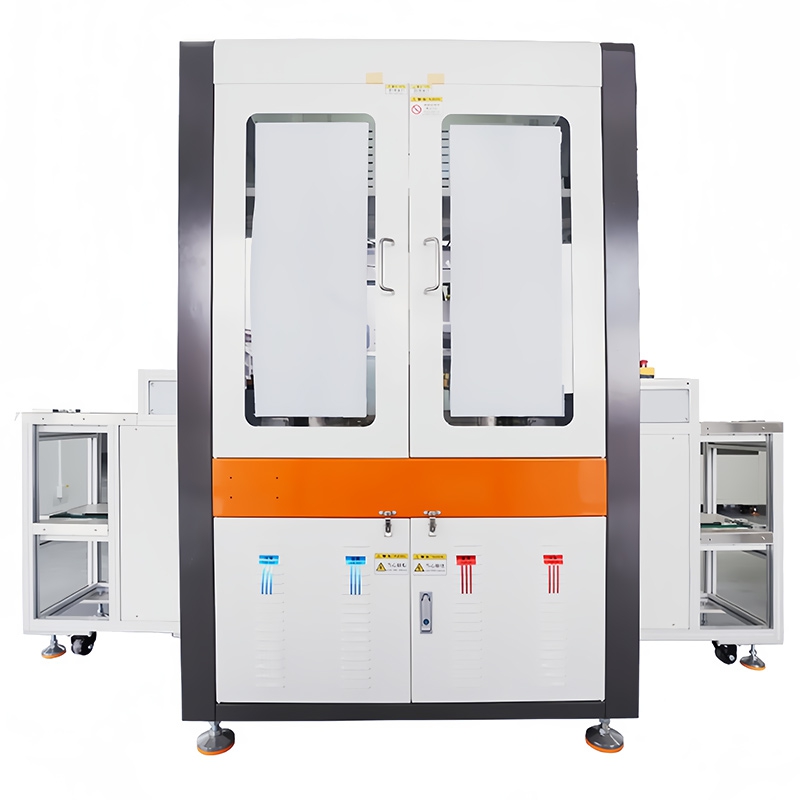

Dual-Station Hot Bar Soldering Machine

Industry Focus

Automotive electronics, consumer electronics, telecommunications, and other related fields.

Applicable Products

Tailor-made for the forming process of cables such as insulated wire harnesses, coaxial cables, and ribbon cable assemblies.

Line Compatibility

Supports semi-auto/fully-auto production modes; standalone operation/full-line integration.

• High-Precision Motion & Positioning：Driven by servo modules, this pcb soldering equipment achieves repeatability as high as ±0.02 mm, ensuring precise positioning for complex assembly tasks.

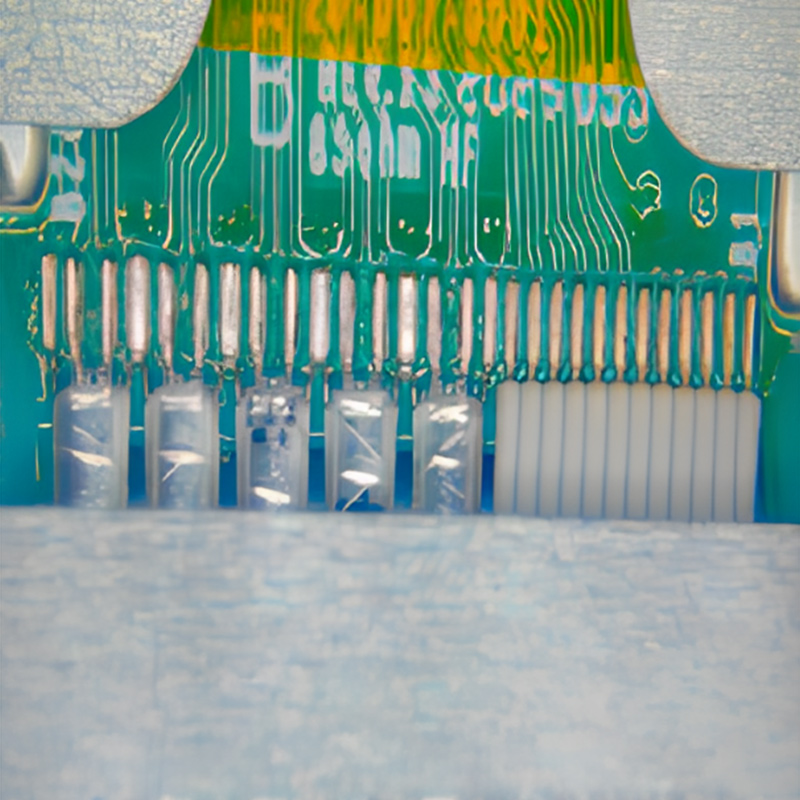

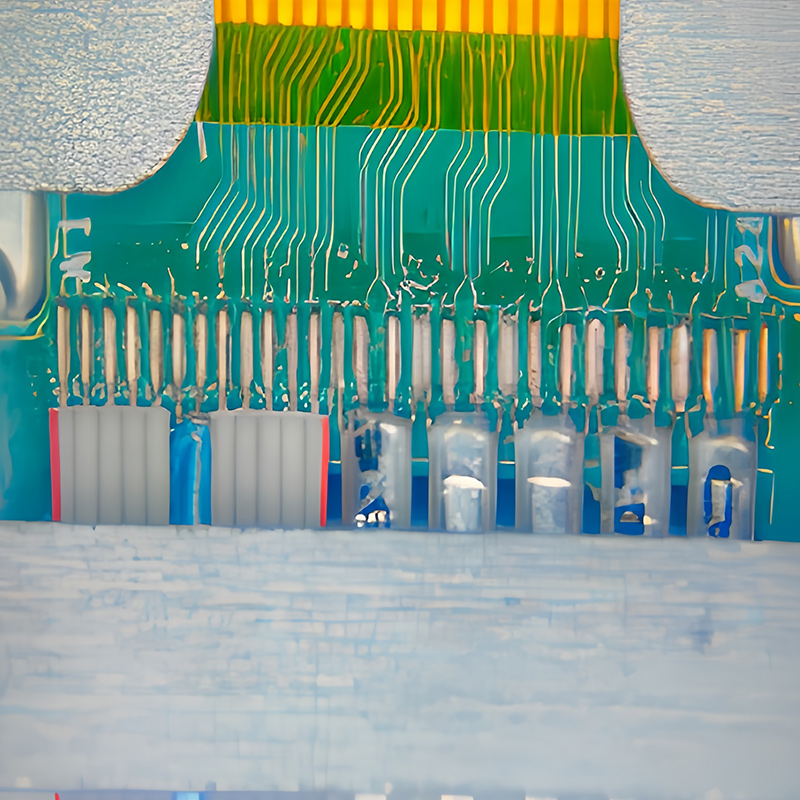

• Soldering Capability & Efficiency：With a dual-head synchronous soldering mode, this pulse heating welder doubles efficiency while ensuring stable and consistent soldering quality. It's also capable of soldering small components (e.g., protection boards, precision devices) and completing batch soldering of multiple pieces in a single cycle.
• Intelligent Temperature Control：It also integrates thermocouples for real-time temperature monitoring and feedback, forming a closed-loop control system to enhance soldering stability. Dual-pulse soldering function allows independent settings of temperature, duration, and temperature rise for both the first and second pulses. Besides, it is also equipped with temperature monitoring and real-time LED display interface to show the temperature curve during soldering.
• Automation & Scalability：It supports vertical movement control of the soldering head and cooling airflow adjustment for the heating head. It can also store up to 20 sets of soldering parameters, facilitating product changeover and supporting integration into automated production lines.
