Connector Automation

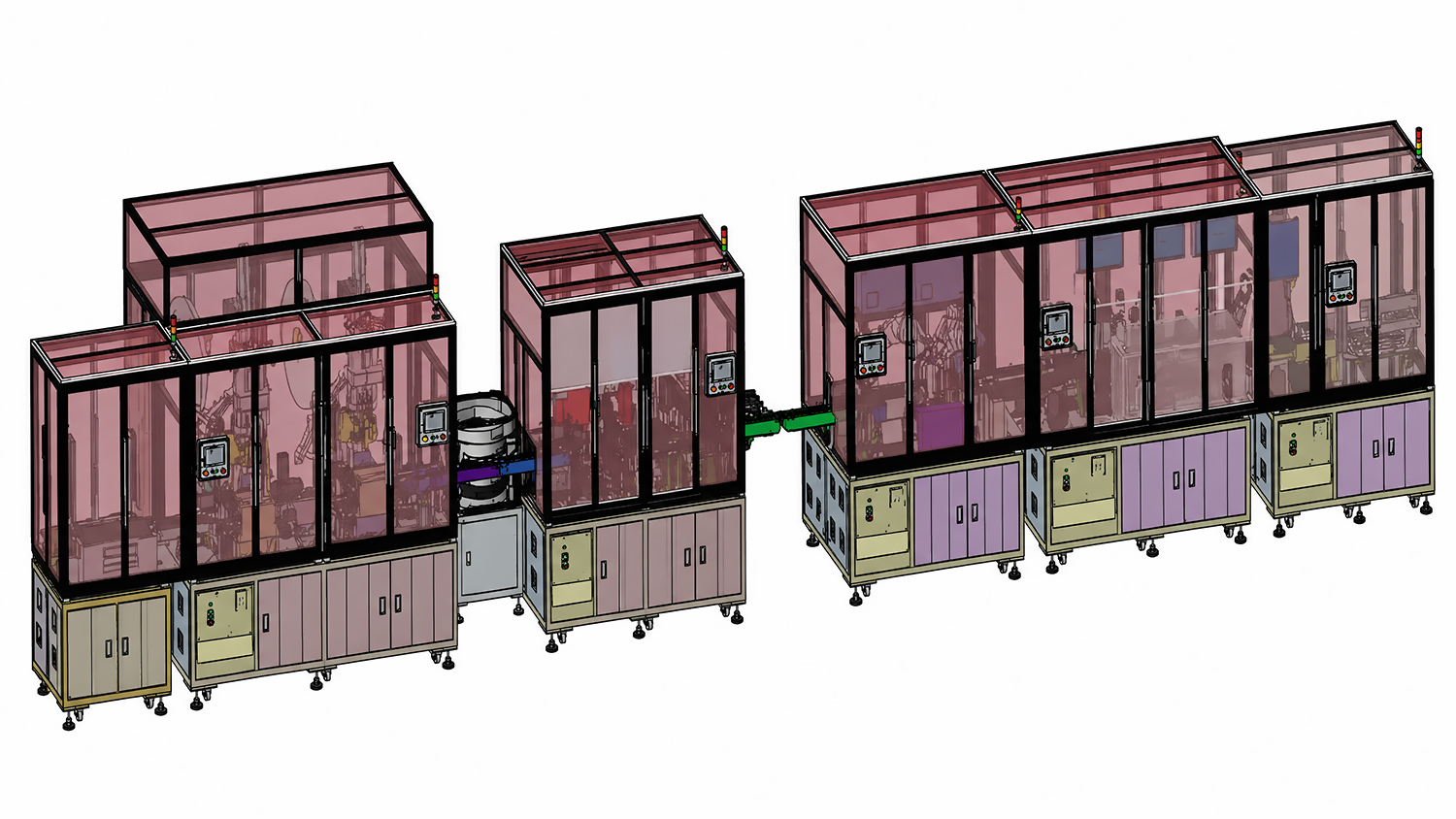

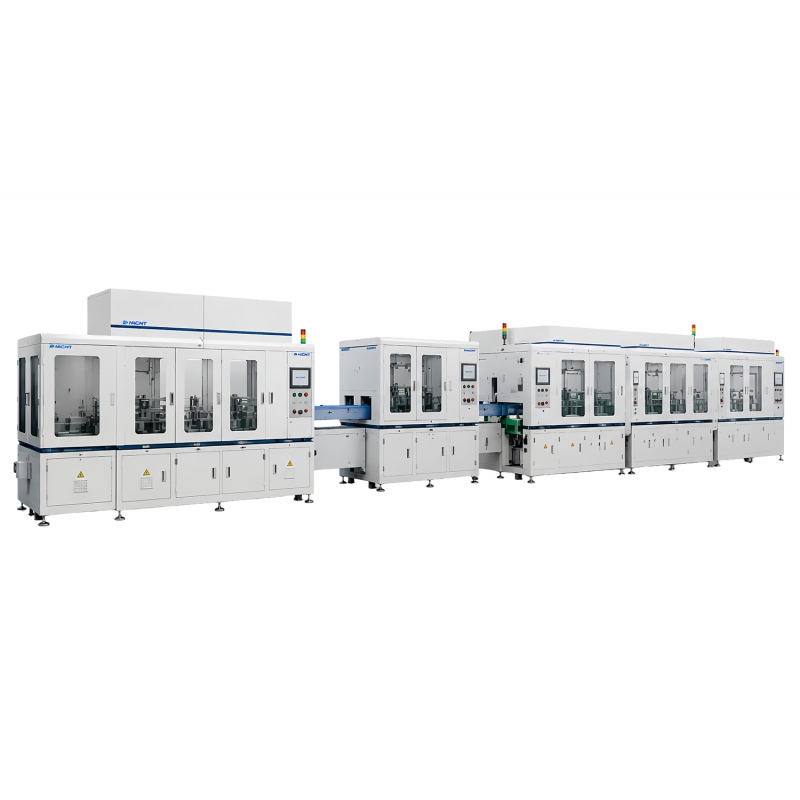

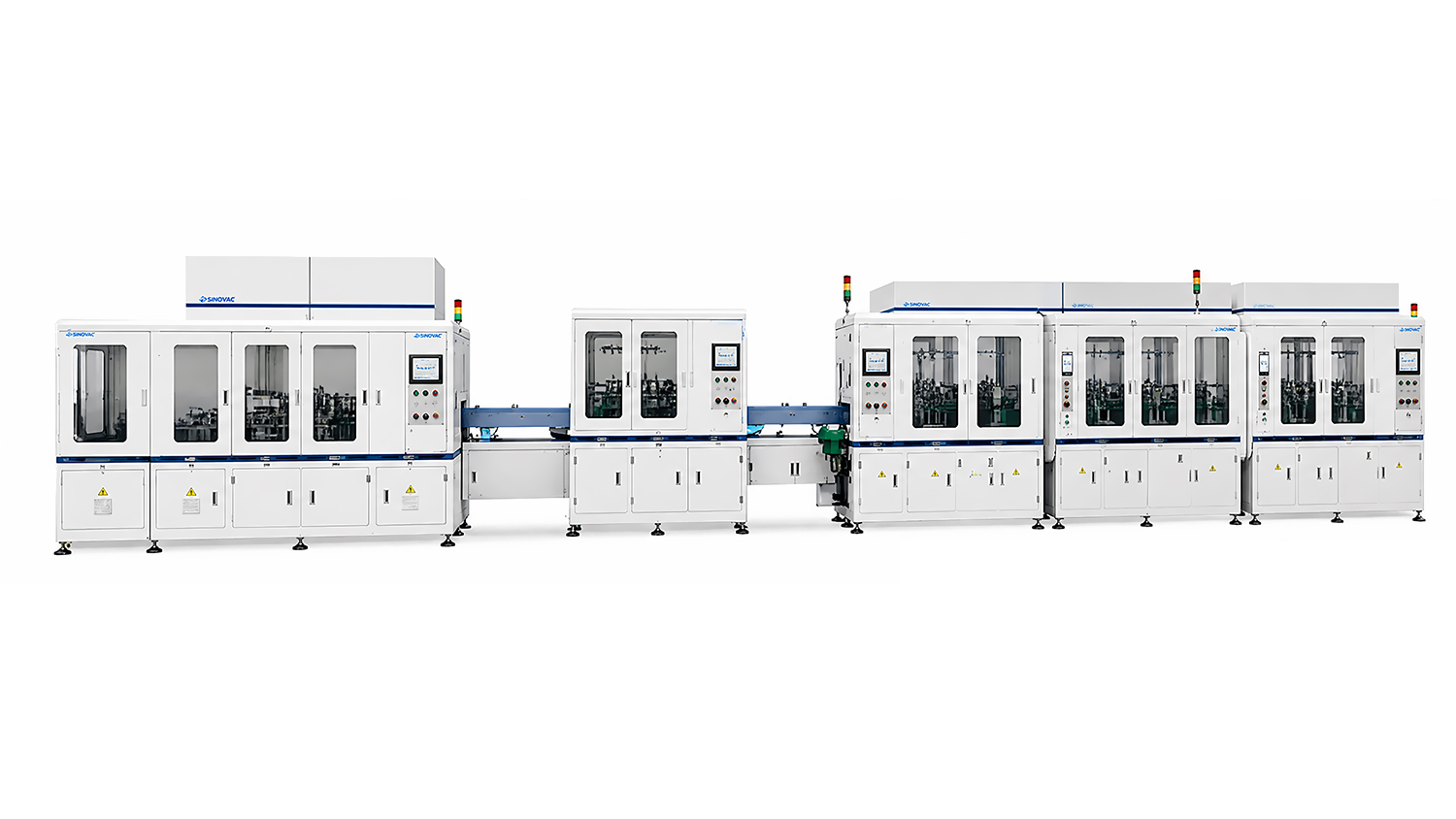

Integrating a cam-driven pin insertion system and a high-precision vision inspection system, this automatic line is specifically engineered for high-performance backplane connectors in the field of communications. The high-speed cam-driven pin insertion technology enables high-accuracy assembly, significantly shortening cycle times while reducing labor costs.
Industry Focus
Widely applied in communications, data centers, automotive electronics, and other related fields.
Applicable Products

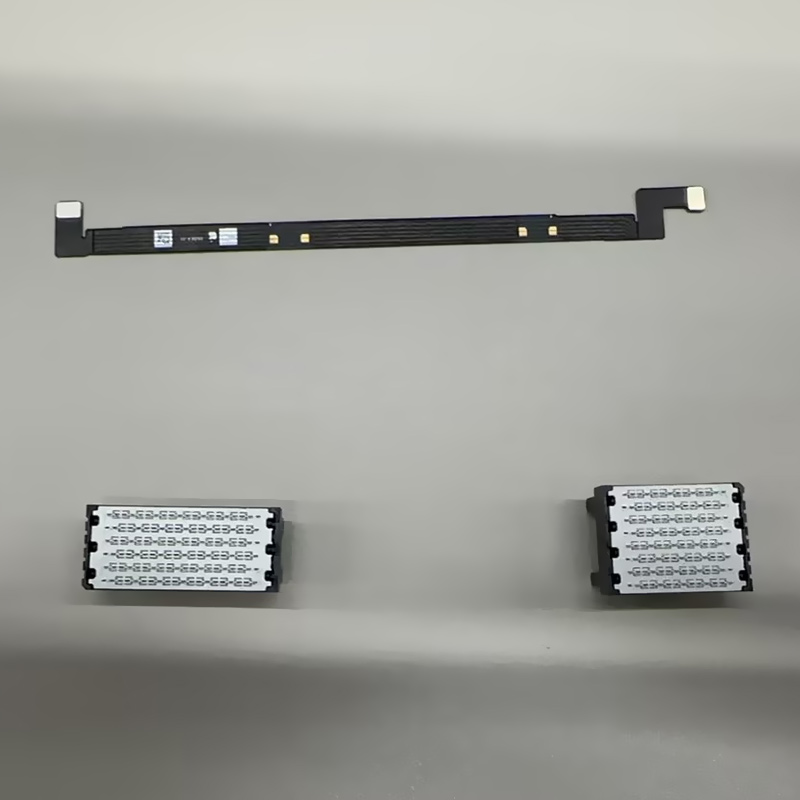

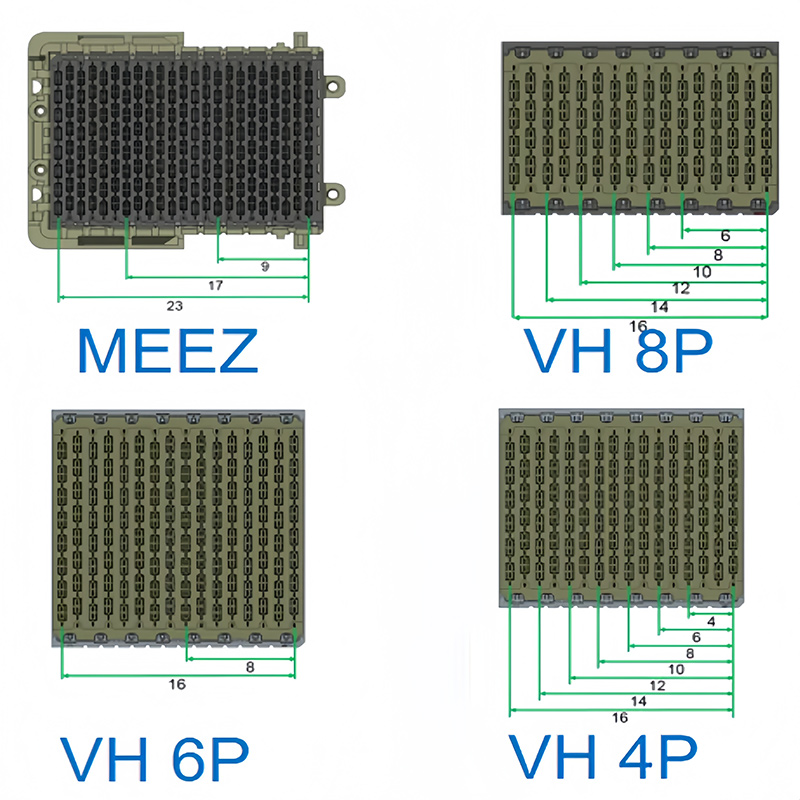

Tailor-made for the assembly of high-speed connectors used in core switches, servers, and base station equipment.
Line Compatibility
Supports fully automatic production mode and rapid modular changeover.
| Item | Specification |
|---|---|
| Dimensions (L×W×H) | 13,550 mm*2,150 mm*2,400 mm |
| CT | ≤ 3 s |
| UPH | 1,080 pcs/h |
| Yield | ≥ 99% |
| OEE | ≥ 85% |
