High-Speed Cable Automation

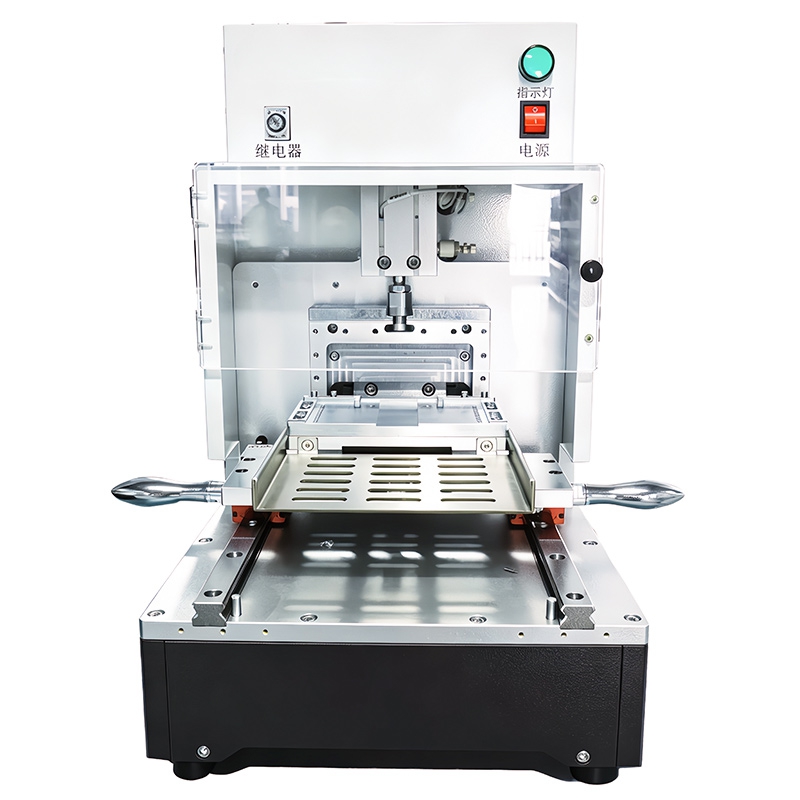

Equipped with specialized forming and trimming blades, this high-precision cable forming and trimming machine delivers semi-automatic precision cutting following manual conductor alignment. It effectively eliminates human error, significantly enhancing cutting accuracy and operational efficiency.
Industry Focus
High-speed cable processing and cable assembly manufacturing.
Applicable Products

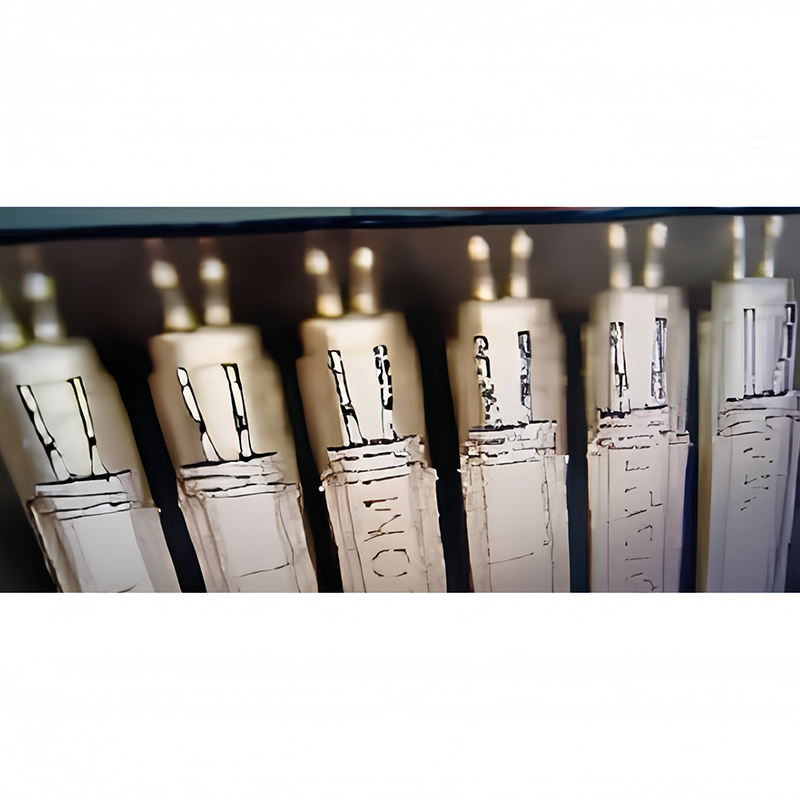

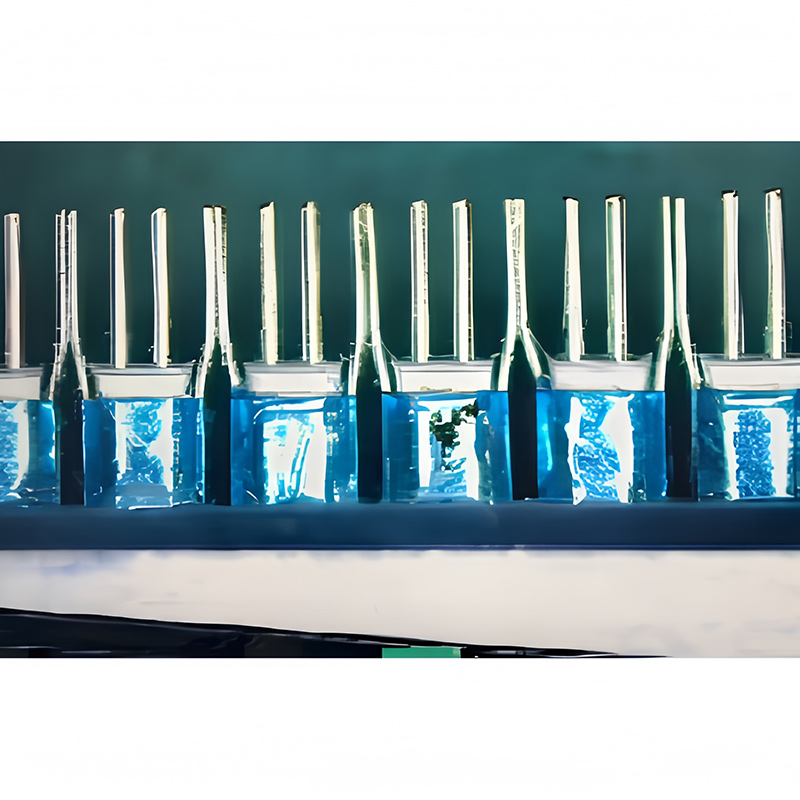

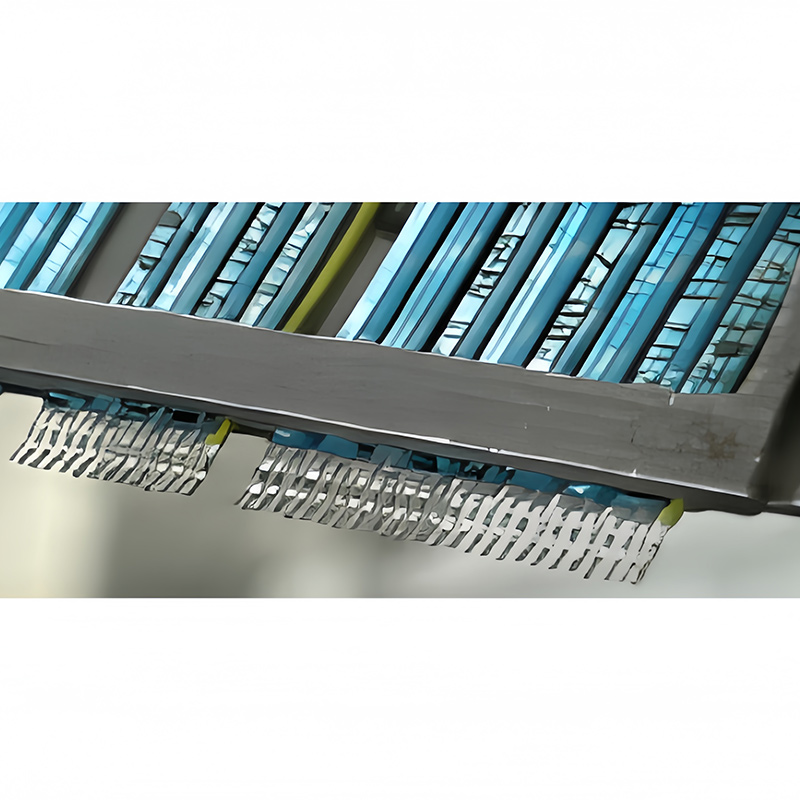

High-speed cables and cable assemblies requiring conductor trimming, pre-forming and final forming.
Line Compatibility
Desktop automation equipment designed for standalone operation.
| Item | Specification |
|---|---|
| Rated Voltage | AC220V 50Hz |
| Equipment Power | < 1.0 kW |
| Air Pressure | 0.5-0.7 MPa |
| CT | ≤ 4 s |
| Compatible Product Width | < 90 mm |
| Dimensions (L×W×H) | L 300 x W 230 x H 360 mm |
