High-Speed Cable Automation

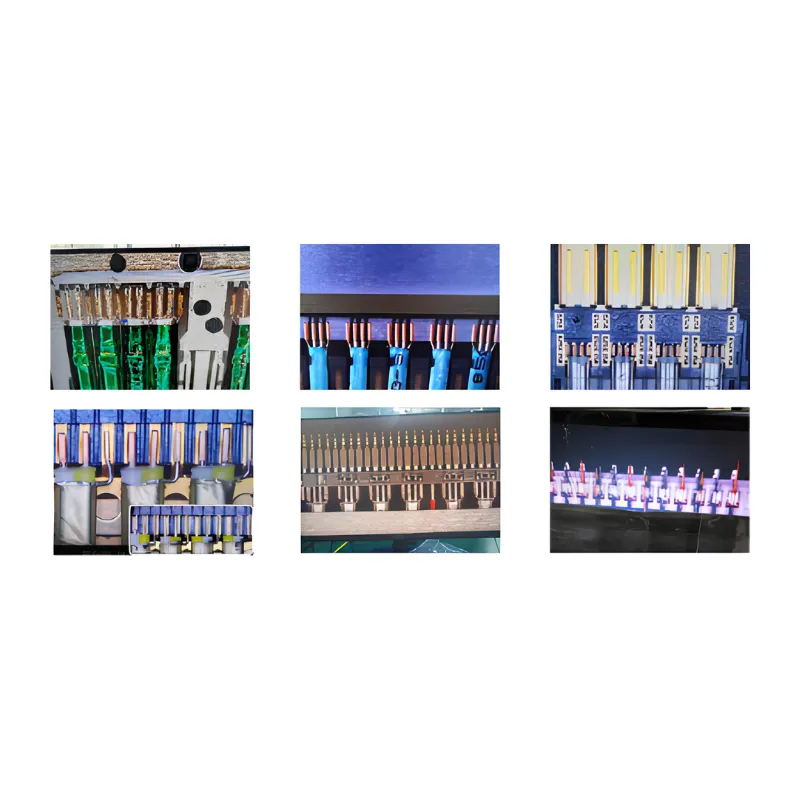

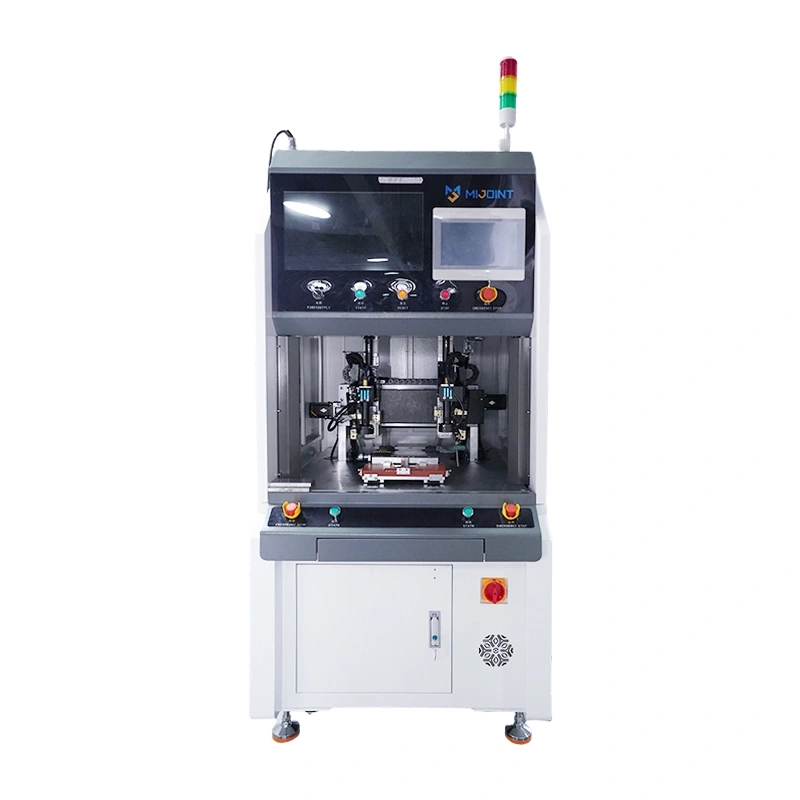

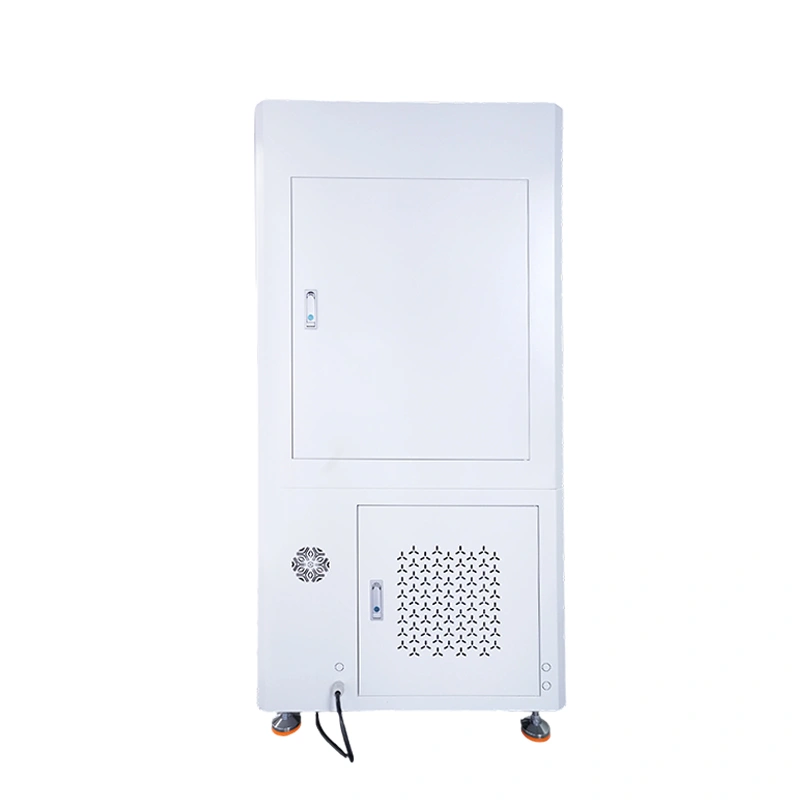

The Semi-Automatic Single-Station Resistance Welding Machine integrates pressure sensing and electronic control for precise adjustment of output voltage, welding time and welding pressure. A built-in current sensor monitors weld quality in real time. It is designed for fine-wire and metal material welding in micro-component manufacturing.
Industry Focus
High-speed cable manufacturing and cable assembly processing.
Applicable Products
High-speed cables and cable assemblies requiring resistance welding.
Line Compatibility
Semi-automatic single-station equipment designed for independent operation.
| Item | Specifcation |
|---|---|
| Maximum Output Pulse Power | 540 VA |
| Welding Pulse Width | 0-29.9 ms (resolution 0.1 ms) |
| Control Mode | Manual/Auto |
| Welding Station Dimensions | 90 x 90 mm |
| Main Pulse Amplitude | 0.01-1.99 V (resolution 0.01 V) |
| Power Supply | AC 220 V |
| Heating Method | Pulse heating |
| Weldable Wire Diameter | ∅ 0.02-0.3 mm |
| Dimensions (L×W×H) | L 620 × W 600 × H 1,600 mm (excluding monitor) |
